| Info regards to bushing kit fitment for 92-95 Civic EG and 93-97 Del Sol |
|
92-95 Civic EG or 93-97 Del Sol owners, please read the information below, before purchasing a bushing kit.
A lot of our customers with 92-95 Civic or 93-97 Del Sol outside the US often tell us that they are not sure which bushing kit they would need. The truth is that it does not matter what country / region your EG / Del Sol were made or imported to. It does not matter what model and specs it is, our 6107-EG (92-95 Civic US Spec bushing kit) may not be the kit you need.
You may ask "What kit do I need then?" To determine the correct bushing kit that you need for your EG Civic / Del Sol, you will need to find out what type of rear lower arms and what size bushings you have on it.
|
| There are four type of rear lower arms that you will find on your 92-95 EG Civic / 93-97 Del Sol. |
.jpg) |

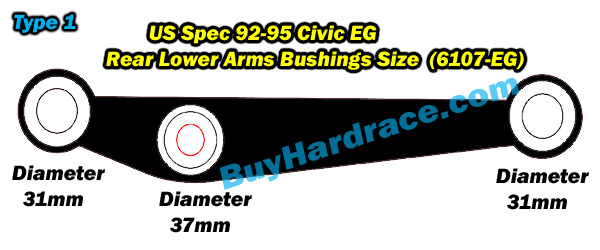

| Type 1: Rear lower arm with three bushings, without sway bar mounting point |
| Bushing Size: 31mm diameter bushings on the outside, and 37mm diameter shock bushing in the middle |
| Origin: This type of rear lower arms are usually found on 92-95 Civic US Spec 2 door coupe and 3 door hatchback. |
| Bushing Kit you need: 6107-EG 92-95 Civic US Spec |
.jpg) |

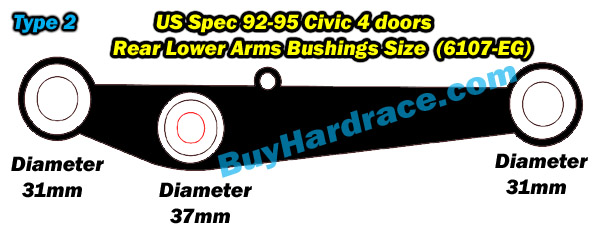

| Type 2: Rear lower arm with three bushings, with sway bar mounting point |
| Bushing Size: 31mm diameter bushings on the outside, and 37mm diameter shock bushing in the middle |
| Origin: This type of rear lower arms are usually found on 92-95 Civic 4 doors that come equipped with OEM rear sway bar from the factory. |
| Bushing Kit you need: 6107-EG 92-95 Civic US Spec |
.jpg) |

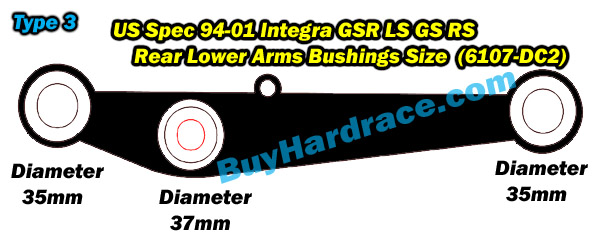

| Type 3: Rear lower arm with three bushings, with sway bar mounting point |
| Bushing Size: 35mm diameter bushings on the outside, and 37mm diameter shock bushing in the middle |
| Origin: This type of rear lower arms are usually found on 94-01 Integra GSR / LS / GS / RS models. |
| Bushing Kit you need: 6107-DC2 94-01 Integra GSR LS |
.jpg) |

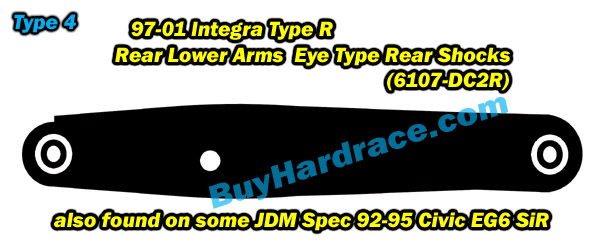

| Type 4: Rear lower arm with two bushings, with sway bar mounting point, uses eye type rear shock instead of the fork type. |
| Bushing Size: 30mm diameter bushings |
| Origin: This type of rear lower arms are usually found on 97-01 Integra Type R models, and some JDM Spec EG6 SiR |
| Bushing Kit you need: 6107-DC2R 97-01 Integra |
